Conveyor Type Metal Detector – NMD 530 Series
Conveyor Type Metal Detector – NMD 530 Series

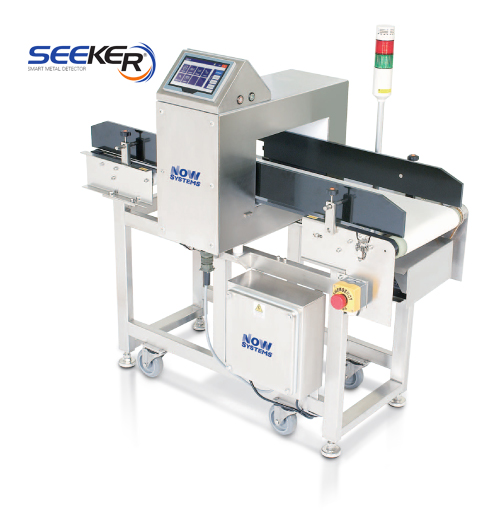

NMD530 Series (SEEKER) Conveyer type metal detector is the most widely demanded model among NMD530 Series range products. Offering multi frequency operation system which is able to auto-select the correct operating frequency for maximum contaminant sensitivity in second. No longer are operators required to manually optimize frequencies, which is both time consuming and risky.
Complemented by an array of innovative features and advantages, NMD530 Series (SEEKER) Conveyor type metal detector delivers tangible benefits to the manufactures at every key stage in their process and is equally effective in both “wet” and “dry” application.
Conveyor

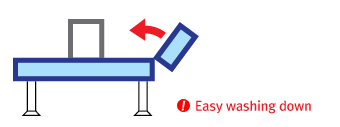

Folding conveyor type is easy to wash down
Belt Drop
Auto-Tension Mechanism
- For relatively light weighted and low-thickness products in limited site
- Automatic tension adjustment function
- For belt with over 800mm, conveyor length 2000mm
Incline conveyor available
Installation video for conveyor metal detector
NEMS (Now-Easy-Monitoring Software) is a graphical reporting software tool which runs over a ethernet network and captures data from connected machine for analysis and reporting from a remote computer. NEMS is designed to work with Nowsystems’s Metal Detector, Check Weigher and Aluminum Metal Detector (Alcon).
NEMS displays live and historical batch data for all productions runs
How does NEMS work?
Corresponding Machine Record
Current Product Number and Name for testing
Machine Status (Connection, Error & Test Mode)
Production Amount
Rejection Amount
Statistics Data Reivew
NEMS displays real-time data for each individual machine that is connected to the network and provides batch summary details and trend analysis of key measurements such as product giveway or metal count. Additionally, users can see the current machine status, whether it is on-or offline, what product is currently being run as well as individual pack data. NEMS also saves historical and live data for all machines, which can be easily accessed through a secure ethernet network link.
NEMS enables enhanced reporting
Why use NEMS?
Without NEMS, reporting is restricted to historical information that is stored locally on each machine. These reports must then be exported via the available USB port in TXT file format. While there is useful information in these reports, analsys of the data is limited and time consuming. What’s more,
NEMS software is deployed on a local network server. Live data is displayed which allows users to quickly identify any issues that may arise, such as an increse in rejects, and any error status of the machine.
NEMS also helps users comply to regulations, improve productivity, minimize paperwork and reduce manufacturing costs.
